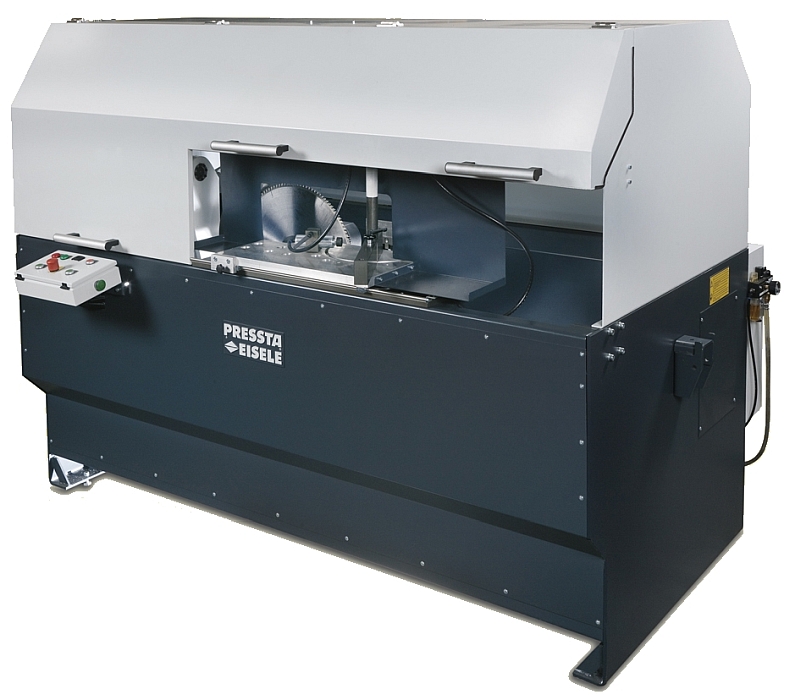

PRISMA 500 – Notching Saw

Variable notching possibilities for mullion and transom combinations, e.g. curtain walls, winter garden, sky lights and special designs
Manual adjustment of the horizontal blade max. 20mm to the front to cut slots
Notch variation: rectangle, one sided angular, two sided angular, three sided angular
Notch dimensions: 185mm horizontal, and 210mm vertical at (90°)
Profile dimensions: height maximum 280mm, width maximum 300mm
Manual adjustment of saw blade height, positioning via mechanical digital display; electronic display optional
Swivelling range vertical saw blade 30°-90°-30° (back/mid/front) positioning via mechanical digital display
Swivelling range of both, horizontal and vertical saw blade, 30°-90°-30°, positioning by mechanical digital display
Material fence on the table swivelled left / right 30°-90°-30°, positioning by scale
Depth stop adjustable via hand wheel and slide, read out by mechanical digital display, manual clamping
